      Electrical Fluid Analogy Flownet

      Electrical Fluid Analogy Flownet
      Electrical Fluid Analogy Flownet
      Send Inquiry
      Product Code : FPE005
      Product Description

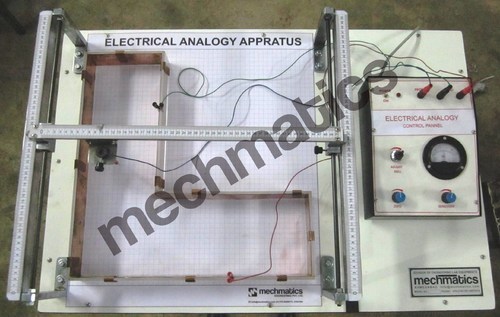

      Electrical Fluid Analogy Flownet

      Electrical Analogy Method is based on the fact that the flow of fluids and the flow of electricity through a conductor are analogues. These two systems are similar in the following respects

      • The electric potential is analogues to the velocity potential.
      • The electric current is analogues to the velocity of flow.
      • The homogenous conductor is analogues to the homogenous fluid. The experimental set up consists of a model of one flow geometry for which the flow net is to be drawn.

      Features of Setup:

      • x-Y Probe Holder
      • Various Shapes Possible in range 450 mm x 450 mm
      • Different sizes of copper conducting strips
      • Graphical Background
      • Perspex Models
      • Electronic system is provided with a signal generator and potentiometer circuit probe.
