      Engineering Drawing

      Engineering Drawing
      Engineering Drawing
      Send Inquiry
      Product Code : ED001
      Brand Name : MECHMATICS ENGINEERING PVT. LTD
      Price And Quantity
      • Minimum Order Quantity
      • As per requirement
      • Unit of Measure
      • Piece/Pieces
      Product Description

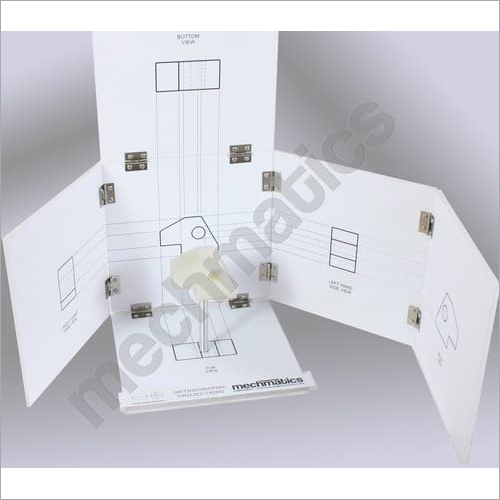

      ORTHOGRAPHIC PROJECTIONS - ENGINEERING DRAWING

      Model is an educational concept for beginners in technical drawing. A three dimensional stand which consists of six Perspex planes with associated views inserted on each plane of the stand enables a direct comparison between the work piece and the drawing.

      The planes folds into a box making it easy to carry. It opens up flat to represent projections on sheet. Models are designed to clear fundamentals of visible, hidden and centre lines


      Features:-

      FIRST AND THIRD ANGLE

      EASY TO CARRY BOX

      LIGHT IN WEIGHT

      VARIETY OF SHAPES

      Trade Information
      • Payment Terms
      • Others, Cheque
      • Main Export Market(s)
      • Africa, Middle East, Eastern Europe, South America, North America, Central America, Australia, Asia
      • Main Domestic Market
      • All India
