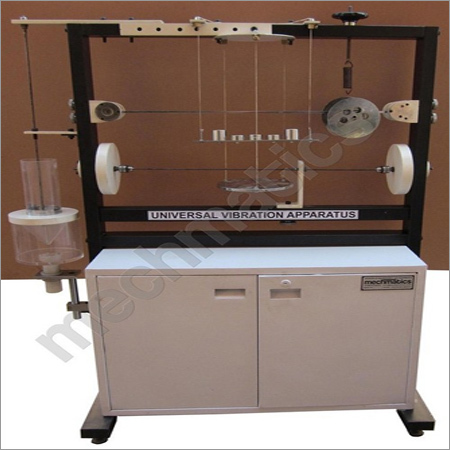

      Universal Vibration Apparatus

      Universal Vibration Apparatus
      Universal Vibration Apparatus
      Send Inquiry
      Product Code : DOM001
      Brand Name : MECHMATICS ENGINEERING PVT. LTD
      Product Description

      UNIVERSAL VIBRATION APPARATUS



       EXPERIMENTAL SCOPE

      • Simple pendulum
      • Compound pendulum
      • Bifilar Suspension
      • Trifler Suspension
      • Mass-spring systems
      • Equivalent Spring Stiffness

      Available also as

      Pendulum Module

      • Torsional oscillations of a single rotor
      • Torsional oscillations of a single rotor with viscous damping
      • Torsional oscillations of a two rotors system

      Available also as

      Torsional Vibrations Module

      • Transverse vibration of a beam with one or more bodies attached
      • Free vibration of a Spring-mass system
      • Forced damped vibration of Spring-mass system
      • Dunkerley's Theorem Verification

      Available also as

      Transverse Vibrations Module





      Specifications

      • Net Dimensions: 1400 x 600 x 1600 mm
      • A heavy and sturdy MS frame with a useful cupboard to store all accessories.
      • A Control panel with Dimmer and Digital RPM Indicator
      • Arrangement for plotting amplitudes of vibrations by a strip chart recorder.
      • Arrangement for changing the damping positions.
      • No. of long steel Beam = 3 nos.
      • No. of Shaft = 3 nos.
      • No. of Spring of Varying Stiffness = 2 Nos
      • Tools Included: Allen key set, Stopwatch and measuring tape
      • A Comprehensive and a detailed technical Manual
