Vane Pump Test Rig

Vane Pump Test Rig
Vane Pump Test Rig
Send Inquiry
Product Code : FPE004
Product Description

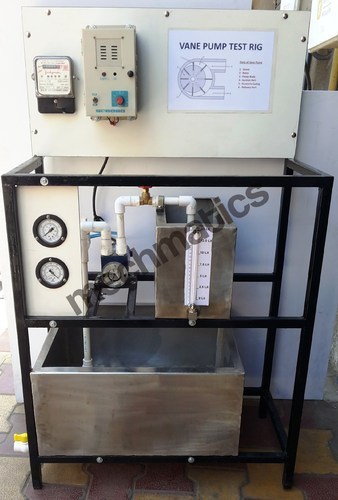

Vane Pump Test Rig

A rotary vane pump is a positive-displacement pump that consists of vanes mounted to a rotor that rotates inside of a cavity.
Common uses of vane pumps include high pressure hydraulic pumps and automotive uses including, supercharging, power steering and automatic transmission pumps
SPECIFICATIONS : -

  • Vane pump - 15 x 15 mm. size, base mounted, Specially designed front transparent casing for visualising internal working
  • Motor:-  180 W PMDC with Variable Drive
  • Sump Tank and measuring tank fitted with gauge tube and drain valve.
  • Measuring Tank 400 (L) X 200 (W) x 250 (H) mm
  • Gate valve to control the head
  • Pressure gauge to measure discharge pressure.
  • Vacuum gauge to measure suction vacuum.
  • Energy meter to measure input the motor.
